Lazer Lamps Linear-42

£600.00£645.83

What’s included:
– x1 Linear-42 LED Lamp

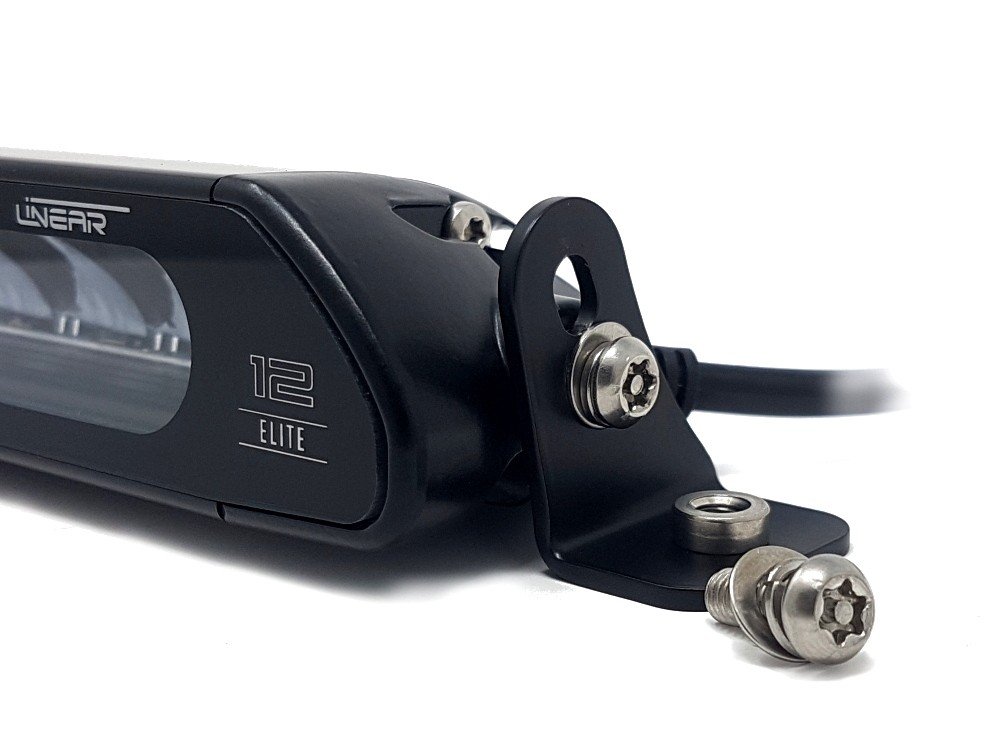

– x1 Linear Anti-Theft Side Mounting Kit (1127k)
– x1 Wiring and Installation Instructions

Product Code: 0L42-LNR

Please get in touch for delivery date

Description

Description

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-42 is an ECE-approved auxiliary LED spotlight that integrates effortlessly with modern vehicles, balancing understated presence with class-leading lighting performance borne out of development and testing at the highest levels of professional motorsport, optimised for everyday road use.

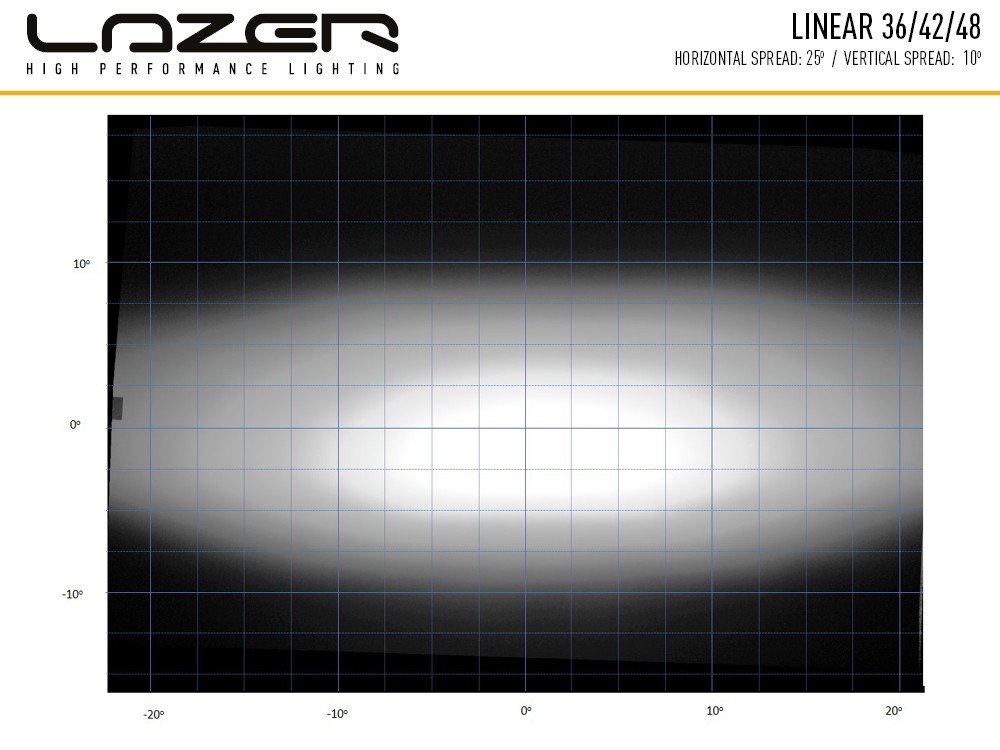

At 1132mm (45”) in length, the Linear-42 comprises 42 high density LEDs carefully selected for their premium output rating, colour temperature at 5000 kelvin, and thermal performance (providing for improved longevity). Emitting a total of 15,750 lumen, the lamp delivers 1 lux to 492m via ultra-reflective, vacuum-metallised optics finely tuned to deliver distance illumination at the limit of European road-legal regulations, and an incredible left/right spread of light which makes night-time driving a significantly more pleasant, and safe, experience.

Designed around roof-mount installations, the rearwards positioning and upward facing LEDs project the light in a perfectly homogenous beam pattern optimised for when mounting at roof height. Glare, which can occur on the vehicle’s bonnet when mounting on the roof, is virtually non-existent, while the aptness to roof mounting is furthered by the aerodynamic design of the lamp, where the sleek housing and absence of sharp edges significantly reduces wind noise during high speed driving.

Manufactured in the UK to exacting standards, like all Lazer products, the Linear-42 has been built to last, backed up by a comprehensive 5-year warranty. The ‘unbreakable’ polycarbonate lens comes with a lifetime guarantee and is finished with a hardcoat lacquer to protect against any scratches. Automotive grade corrosion resistance, alongside anti-theft stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come.

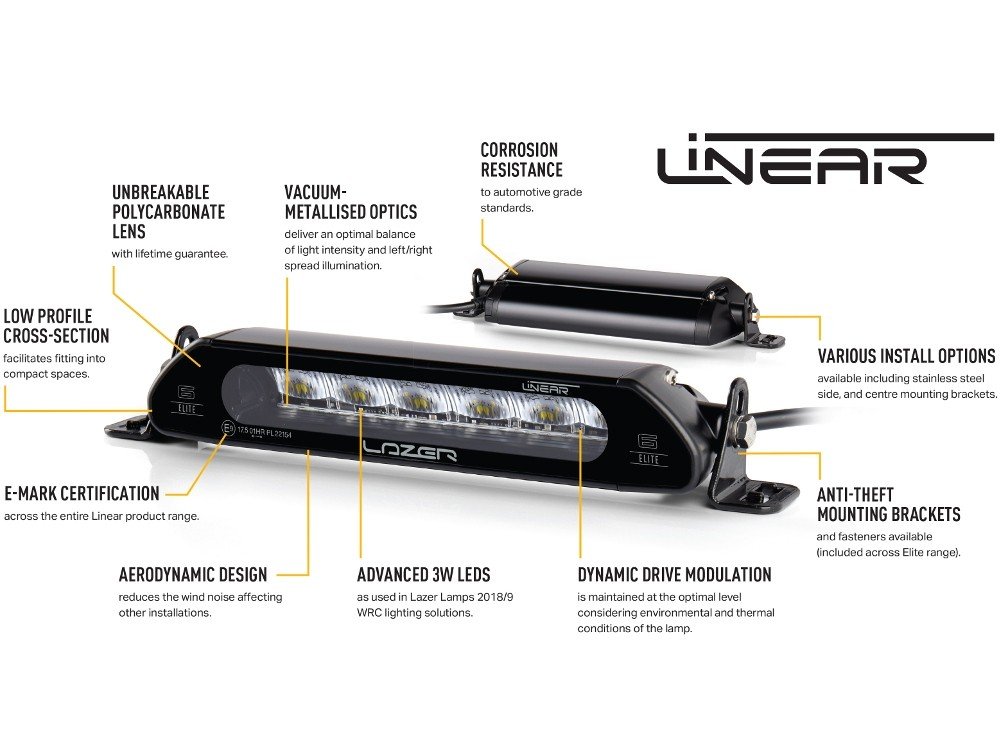

Product Features

  • Aerodynamic design virtually eliminates wind noise from roof installations
  • Highly efficient LED technology
  • Contemporary design features enhance vehicle aesthetics
  • Automotive grade corrosion resistance
  • Reduced up/down spread of light eliminates glare from roof installations
  • ECE approved for on-road use
  • Anti-theft security fixings supplied as standard
  • Electronic thermal management
  • ‘Unbreakable’ polycarbonate lens with lifetime guarantee*
  • IP67 watertight
  • 5 year warranty
  • Supplied with male/female connectors (pre-wired)
  • Designed & manufactured in the UK
  • *Conditions apply

Specification

Voltage Range 9-32V
LED Life 50,000 hours
Weight 3.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux 15750 Lm
Number of High Output LEDs 42
Power Consumption 147 Watts
Current Draw (at 14.4V) 10.2 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 50

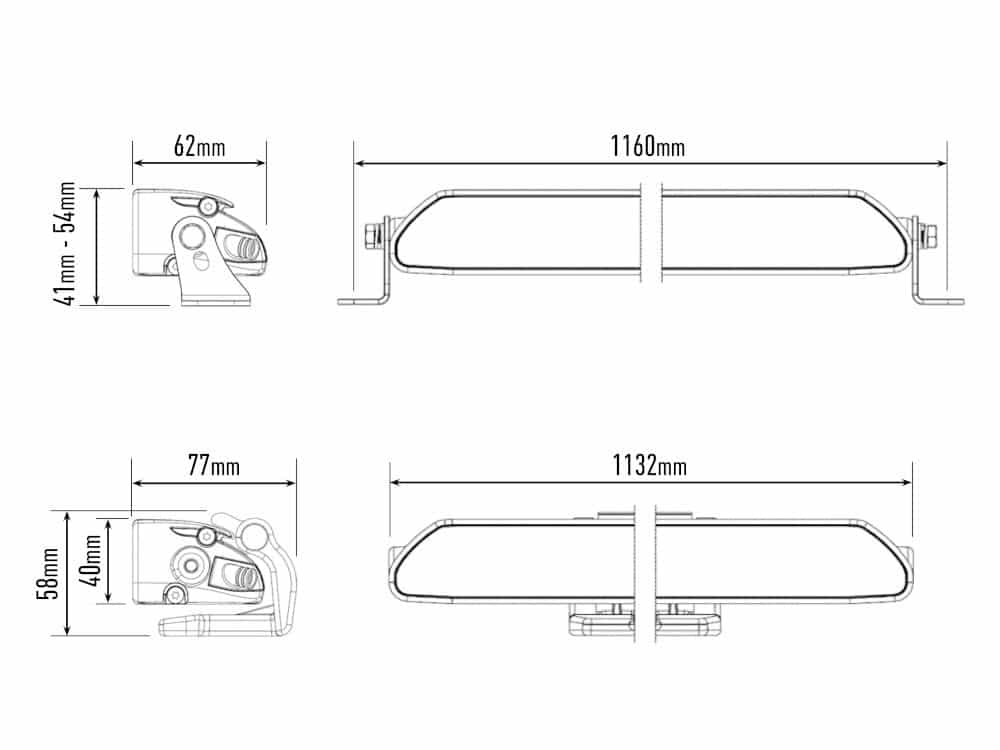

DIMENSIONS
Width 1132 mm
Depth 62 mm
Height 40 mm

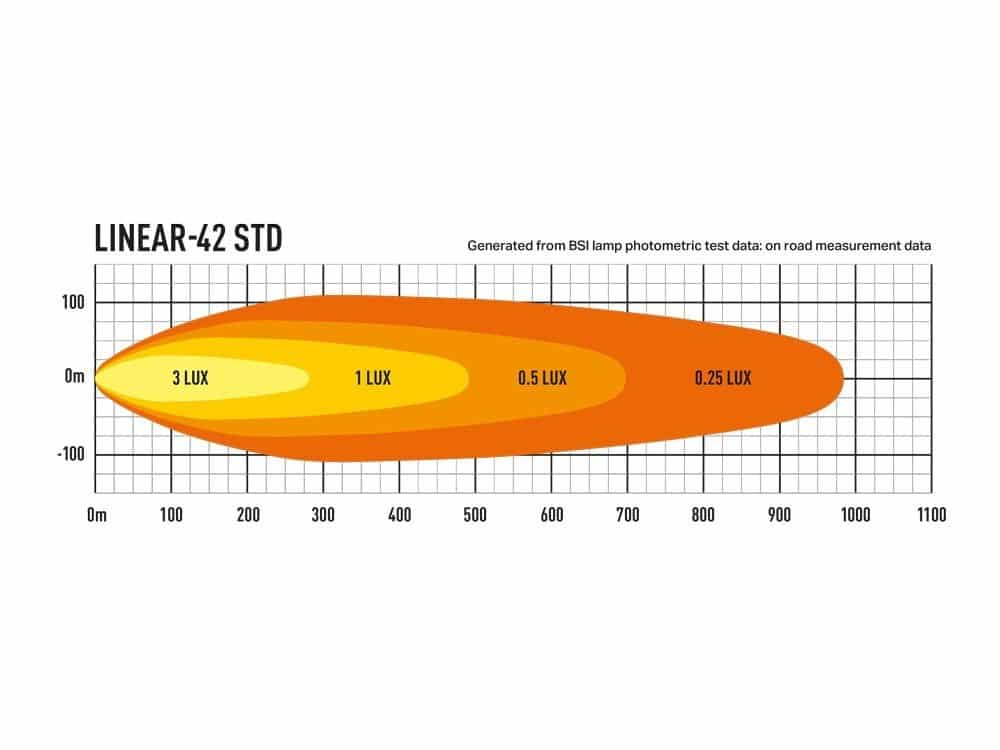

PHOTOMETRIC DATA
0.25 lx Line 984 metres
0.5 lx Line 696 metres
1 lx Line 492 metres
3 lx Line 284 metres

Video’s:

Additional information

Lazer Lamp

Lazer Lamps Linear-42

Electrical & Wiring

None, One-Lamp Harness Kit, One-Lamp Harness Kit With Switch

Mounting Kits

None, Centre Mounting Kit (Linear)
