Compliment stunning vehicle design with the ultimate driving light upgrade for the 2018+ MS-RT Ford Transit Custom, featuring the Linear-18 High Performance LED spotlight. The sleek, low profile design of the lamp facilitates a neat installation onto the upper fascia bar of the front grille, while full ECE compliance allows for integration into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights.
The kit which we have simplified here at C1-R comes with absolutely everything you need. The wiring loom, Linear-18 of your choice, MS-RT grille bracket, CAN Interface, CAN contactless reader and fixtures, the MS-RT lighting upgrade kit delivers incredible levels of illumination for when the sun goes down. The mounting of the light is quick and simple, while resulting in a robust integration that only enhances the sports styling of the vehicle itself. Available in Standard or Elite grade, the later product boasts double the light output for truly outstanding visibility that will have you finding excuses for going out at night!
Like all lighting products from Lazer Lamps, the Linear-18’s are designed, engineered, and manufactured in the UK. Borne out of extensive development and testing done at the highest levels of professional motorsport, including with M-Sport themselves, these are products to be trusted time after time. Backed up by our comprehensive 5 year warranty, your installation will stay looking in great shape year-after-year. Security fasteners are included with the Elite grade products, and available as an optional part on Standard lights.
If you want to turn heads day and night, this is the product for you.
Product Features:
- Vehicle integration kit for Lazer LED Spotlight installation
- Optimised for MS-RT Ford Transit Custom Centre Grille (MY 2018+)

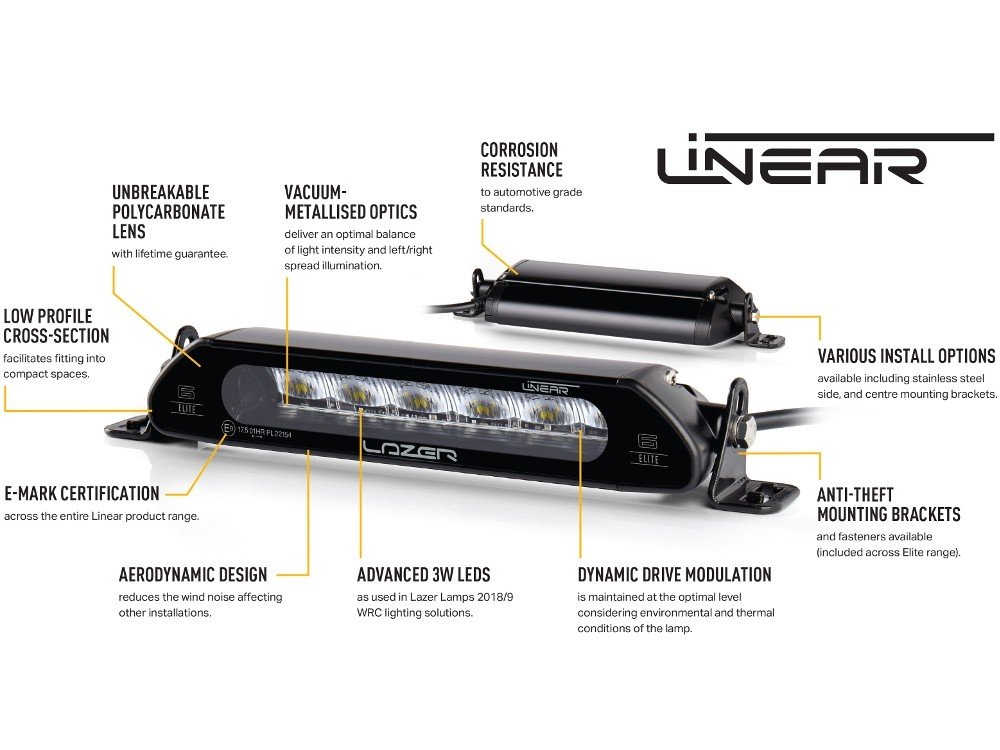

- Utilises Linear-18 High Performance LED Spotlight
- Available in either Standard or Elite grade
- Full fitting kit included; Linear-18, One-Lamp Wiring Kit, CAN interface, CAN contactless reader and Fixing Kit
- Fully road-legal
- 5-year warranty
- Made in Britain
Specification:
- Based on setup: 1x Linear-18 Elite High Performance LED Lamps:
Voltage Range 9-32V LED Life 50,000 hours Weight 1090 gr HIGH BEAM FUNCTION Total Luminous Flux 12150 Lm Number of High Output LEDs 36 Power Consumption 126 Watts Current Draw (at 14.4V) 8.8 Amps CERTIFICATION High Beam ECE R112 ECE Reference 45 DIMENSIONS Width 532 mm Depth 62 mm Height 40 mm PHOTOMETRIC DATA 0.25 lx Line 975 metres 0.5 lx Line 690 metres 1 lx Line 488 metres 3 lx Line 282 metres
