Revo Audi S4/S5 3.0 TFSI | Air Intake Kit

The Revo open cone Air Intake System for the 3.0 TFSI engine improves performance and offers an aggressive intake sound. Ensuring your engine can get access to enough air is paramount when increasing power; more air means more power throughout the rev-range.

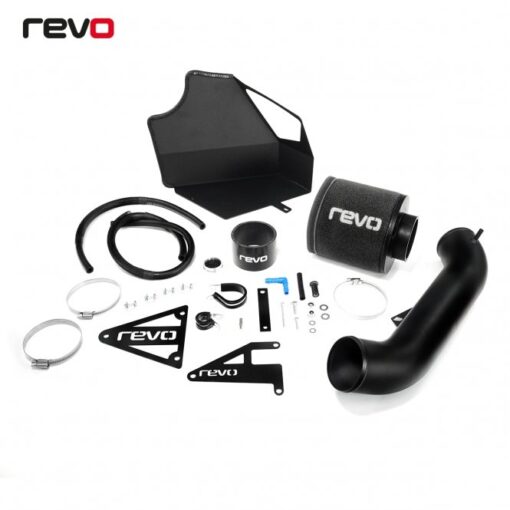

Only Revo Air Intake Systems are specifically designed to work in harmony with your vehicle and Revo Software. Engineered to directly replace the stock airbox, pipework and filter. This kit comes complete with a ceramic coated pipe, heat shield, filter and fitting kit.Key Features

• Increased Performance
• Improved Air Flow Efficiency
• Ceramic Coated
• Three Stage Foam Filter with Mesh

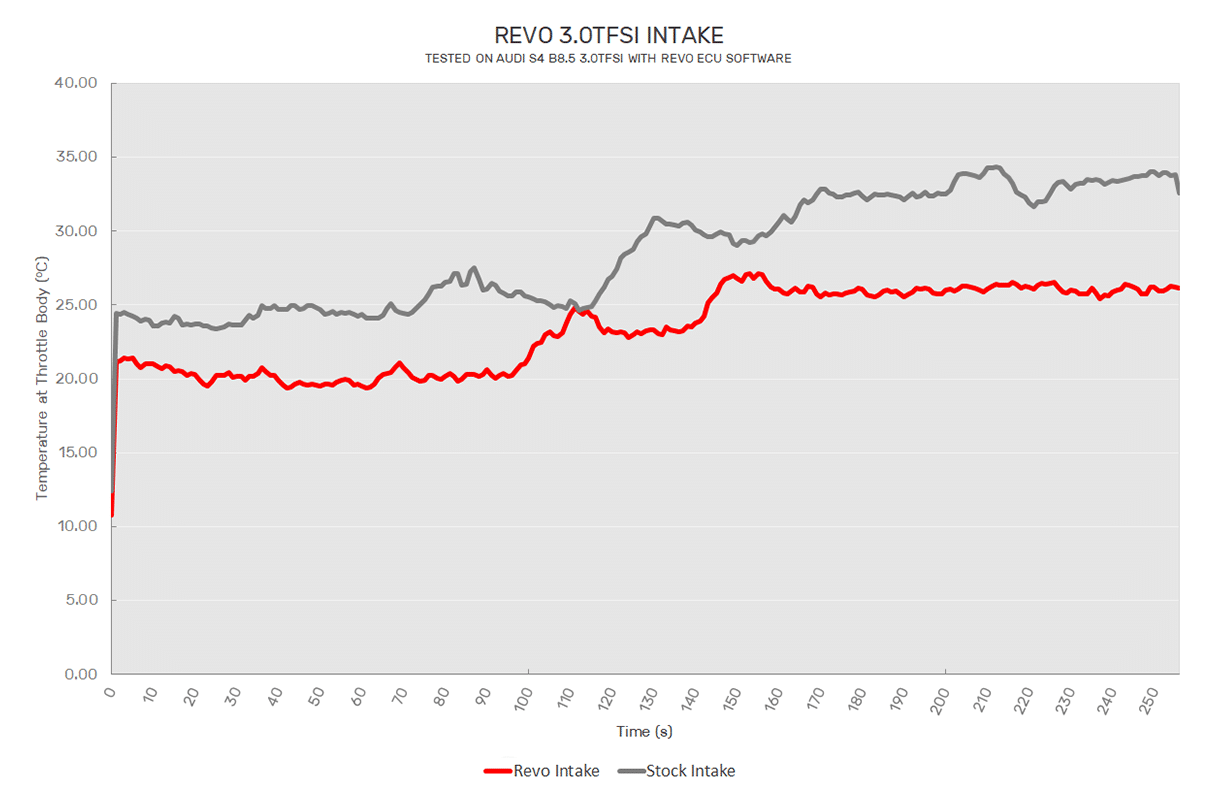

• Lowers Air Intake Temperatures

OEM VS Revo

---

When you begin to enhance performance, the restrictive OEM intake struggles to flow enough air, robbing the engine of power. The Revo Air Intake System removes these restrictive elements promoting smoother airflow. Open Cone systems replace the OEM air box to make space for the heat shield, filter and ceramic coated pipe which joins directly to the throttle body. Revo Flush Fit silicone hoses mean joins eliminate unwanted turbulence and increase the rate at which air can flow, ensuring maximum performance at any level of performance.

Pipe

---

The Revo intake pipe is designed to directly replace the plastic corrugated parts. The single piece mandrel-bent aluminium intake pipe reduces turbulence and internal restrictions. The mandrel-bent angles result in no loss of cross-sectional area and allow increased air speed through the intake.

Ceramic Coating

---

The Revo intake pipe is coated with a Zircotec ceramic coating. Ceramic coatings act as a thermal barrier, reducing the transfer of engine bay temperature to the intake pipe and helping to keep intake air cooler. The coating also allows the pipe to cool at a faster rate, which is important when running more power.

Heatsheild

---

Ensuring the engine has access to cold air is vital for performance. The Revo heat shield channels cold air from the front intake duct while partitioning the filter from the heat of the engine bay. The Revo Heatshield uses the stock mounting points to provide easy and secure installation.

Filter

---

An intake system is only as good as the filter. This kit comes complete with a custom Revo foam filter, supported by galvanised epoxy-coated mesh for strength under load. Revo three-stage foam filters work very differently to conventional paper or cotton-gauze alternatives designed to trap particles on the outer layer. Revo filters trap debris and particles within the foam layers, allowing air to still navigate through. The filter is also reusable.
